Nimbus 405 Flybridge
Nimbus 405 Flybridge
“We have put an extraordinary amount of work into layout and design in order to ensure an optimal flybridge. Not only to create a beautiful boat, but also to provide multifunctional social spaces with the right ambience,” says Joacim Gustafsson, Chief designer at Nimbus. The flybridge has been constructed to harmonise fully with the design of the new coupé series. The roof has light, sweeping lines and incorporates a folding mast. A large, fixed skylight makes the salon very light and airy despite the superstructure. ‘We have put an extraordinary amount of work into layout and design in order to ensure an optimal flybridge. Not only to create a beautiful boat, but also to provide multifunctional social spaces with the right ambience,’ said Joacim Gustafsson, head designer at Nimbus.

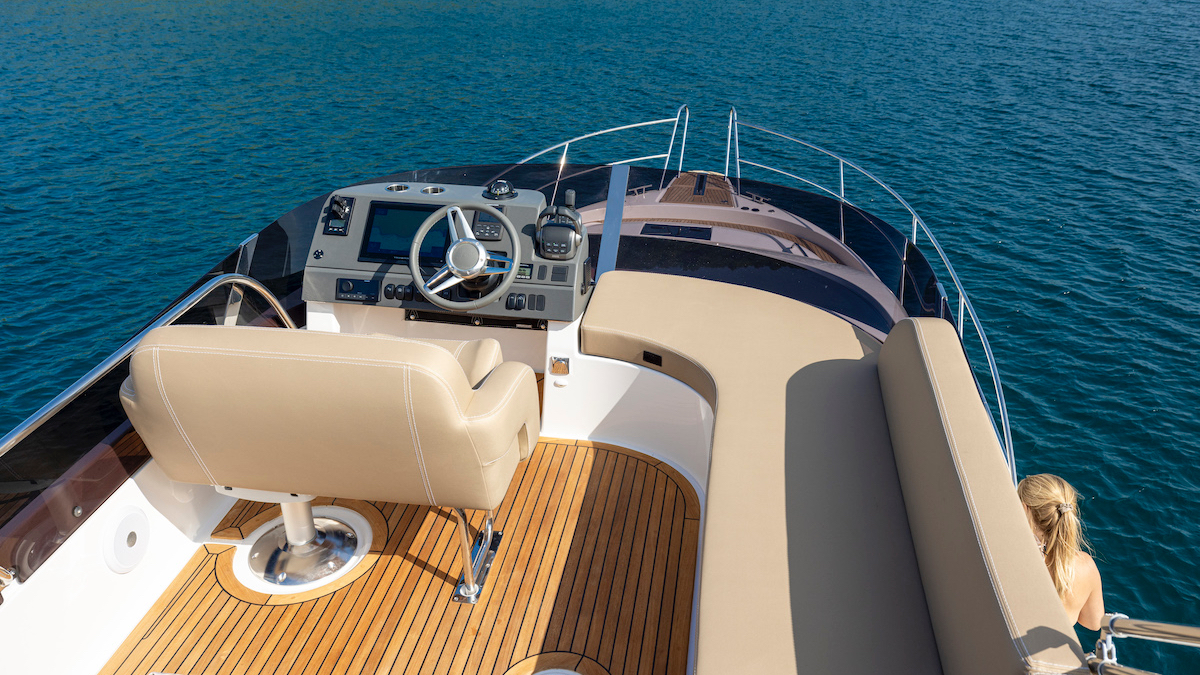

The flybridge includes a wet bar, with sink, grill and fridge, sun bed, large sofa and a twin helm seat. The twin seat can be turned 180 degrees and thus form a roomy social seating area in combination with the sofa. If desired, the sofa can be easily converted into an additional sun bed.
All functions on the flybridge have been designed to allow the boat to pass beneath bridges after a few simple adjustments. Thanks to the “sidewalk” deck layout, walking space is maximized on the starboard side, making it very easy to get on and off the boat and to spend time on deck, while allowing generous space in the cockpit and cabin.
Technical Specification
Lmax, Overall length 13,33 m / 43ft 9 in
Lh, Length of hull 13,16 m / 43 ft 2 in
Bmax, Overall beam 3,86 m / 12 ft 8 in
Bh, Beam of hull 3,75 m / 12 ft 3 in
Ha, Max Air Draft 4,82 m / 15 ft 9 in
Air draft, folded mast 3,50 m / 11 ft 6 in
Th, Transport height 4,35 m / 14 ft 3 in
Thc, Transport height in cradle 4,55 m / 14 ft 9 in
Tmax, Draft 1,1 m / 3 ft 7 in
CoG, Center of gravity 3,87 m / 12 ft 8 in
MLDC, max weight allowed (2 x D4/2 x D6) 12 590 kg / 12 840 kg – 27 756 lb / 28 307 lb
MLCC, weight 9 655 kg / 9 905 kg – 21 285 lb / 21,837 lb
MMTL, Max total load 2 935 kg / 6 471 Ib
Max people 12
CE Category B8/C12
Cabins 3
Berths 6
Tank Capacity
Fuel Capacity 2 x 500 l / 2 x 132 US gal
Water Capacity 2 x 200 l / 2 x 52.8 US gal
Hot Water Capacity 40 l / 10.57 US gal
Waste Capacity 135 l / 35.7 US gal
Electrical System
Start Battery Dual AGM 2 x 12V x 95 Ah
Service battery GEL 4 x 12V x 80 Ah
Service battery Heavy Duty Dual AGM 3 x 12V x 95 Ah
Frequency 50 Hz
Shore power 230V AC
Battery charger 12V 50 A
Engine Alternatives
Volvo Penta 2 x D4-300 442 kW (600 ps) V-Max 28 kn
Volvo Penta 2 x D6-370 544 kW (740 ps) V-Max 32 kn
